Panasonic S5 Full Specs and Additional Images Leaked
The full specs of the Panasonic S5 have as well as product images have leaked by nokishita.
LUMIX S5 full-frame mirrorless camera is designed especially for content creators. Latest advances in image resolution, image stabilization, and autofocus all in this compact camera that is the signature of LUMIX. Experience extraordinary video recording in 4K 60p, 4:2:2 10-bit. It also offers a Full HD 180fps Slow Motion option as well as 4:3 Anamorphic support. This is what makes S5 perfect for use when talking still photos or as a vlog camera.
With 24.2MP 35mm full-frame CMOS sensor, the LUMIX S5 boasts a wide dynamic range and high sensitivity performance. The adopted Dual Native ISO technology enables the LUMIX S5 to record maximum ISO 51200 crystal-clear high sensitivity video. Dual Native ISO minimizes noise in high sensitivity. V-Log/V-Gamut compatibility offers a 14+ stop dynamic range to capture every detail.
The improved autofocus detects head as well as eyes, face and body. The powerful Dual Image Stabilization with 5-axis enables 6.5-stop slower shutter speed.
The compact nature of the S5 is one of the signature features of the LUMIX series. To make sure that your camera withstands tough field use, the S5 comes with a dust and splash resistant construction. Optimized heat dispersion ensures a stable, continuous video recording without interruption.
One of the expanded features of LUMIX S5 is the Live View Composite mode which instantly creates a stunning image out of several live shots; the shutter releases at designated intervals of exposure time to merge the bright parts into a single image. Useful for shooting fireworks or a starry sky.
Full Specs & Images
Type
Digital Single Lens Mirrorless camera
Lens mount L-Mount
Image Sensor Type
35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels 24.20 megapixels / 25.28 megapixels
Aspect ratio / Color filter
3:2 / Primary color filter
Dust reduction system
Image sensor shift type
Latitude
14+ stops (V-Log)
Still Image Recording file format
Still image: JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
6K PHOTO / 4K PHOTO: 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch)) 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)
Aspect ratio
4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels)
When using full-frame lenses
3:2
6000×4000(L) / 4272×2848(M) / 3024×2016(S) / 12000×8000(XL) / 8496×5664(LL) 5184×3456(6K PHOTO) / 3504×2336(4K PHOTO) / 5984×4000(HLG PHOTO, Full-Res.) / 3232×2160(HLG PHOTO, 4K-Res.)
4:3
5328×4000(L) / 3792×2848(M) / 2688×2016(S) / 10656×8000(XL) / 7552×5664(LL) 4992×3744(6K PHOTO) / 3328×2496(4K PHOTO) / 5312×3984(HLG PHOTO, Full-Res.) / 2880×2160(HLG PHOTO, 4K-Res.)
16:9
6000×3368(L) / 4272×2400(M) / 3024×1704(S) / 12000×6736(XL) / 8496×4784(LL) 3840×2160(4K PHOTO) / 5888×3312(HLG PHOTO, Full-Res.) / 3840×2160(HLG PHOTO, 4K-Res.)
1:1
4000×4000(L) / 2848×2848(M) / 2016×2016(S) / 8000×8000(XL) / 5664×5664(LL) 2880×2880(4K PHOTO) / 4000×4000(HLG PHOTO, Full-Res.) / 2144×2144(HLG PHOTO, 4K-Res.)
65:24
6000×2208(L)
2:1
6000×3000(L)
When using APS-C/Super 35mm lenses
3:2
3984×2656(L) / 2880×1920(M) / 2064×1376(S) / 3504×2336(4K PHOTO) 4:3
3536×2656(L) / 2560×1920(M) / 1840×1376(S) / 3328×2496(4K PHOTO) 16:9
3984×2240(L) / 2880×1624(M) / 1920×1080(S) / 3840×2160(4K PHOTO) 1:1
2656×2656(L) / 1920×1920(M) / 1376×1376(S) / 2880×2880(4K PHOTO)
Image quality
RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color space
sRGB, AdobeRGB
Motion Picture Recording file format
MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit)) MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
Switch NTSC / PAL
Yes (NTSC (59.94Hz) / PAL(50.00Hz))
MOV: NTSC (59.94Hz) Full-frame
[4K] 3840×216029.97p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM
[FHD] 1920×1080
59.94p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP)/ 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
APS-C / Pixel by Pixel
[4K] 3840×2160
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920×1080
59.94p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
MOV: PAL (50Hz) PAL (50.00Hz)
Full-frame
[4K] 3840×2160
25.00p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920×1080
50.00p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
APS-C / Pixel by Pixel
[4K] 3840×2160
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920×1080
50.00p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
MP4: NTSC (59.94Hz) Full-frame
[4K] 3840×216029.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
3.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) APS-C / Pixel by Pixel
[4K] 3840×2160
59.94p, 100Mbps (4:2:0 10-bit LongGOP)
(H.265/HEVC, AAC)
29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920×1080
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4: PAL (50.00Hz) Full-frame
[4K] 3840×216025.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920×1080
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) APS-C / Pixel by Pixel
[4K] 3840×2160
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)< 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920×1080
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
Slow & Quick
MP4: NTSC (59.94Hz)
Full-frame
[FHD] 1920×1080
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60, 100, 120, 150, 180 fps
Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more
APS-C / Pixel by Pixel
[4K] 3840×2160: 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60 fps
MP4: PAL (50.00Hz) Full-frame
[FHD] 1920×1080: 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)1, 2, 5, 10, 15, 30, 60, 100, 120, 150, 180 fps
Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more
MP4: PAL (50.00Hz) (Contd.) APS-C / Pixel by Pixel
[4K] 3840×2160: 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)1, 2, 5, 10, 15, 30, 60 fps Viewfinder Type
OLED Live View Finder Pixels
Approx. 2.36 million dots Field of view / Magnification
Approx. 100% / Approx. 0.74x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to
3:2
Eye point / Diopter adjustment
Approx. 20 mm at infinity; -1.0 m-1 / -4.0 – +4.0 (dpt) Eye sensor
Yes Display speed
120fps / 60fps Display time lag
Approx. 0.005sec Rear Monitor Type
TFT LCD monitor with static touch control Monitor size
Free-angle, 3.0-inch (7.5cm), 3:2 aspect Pixels
Approx. 1.84 million dots Field of view
Approx. 100% Focus Type
Contrast AF system DFD technology
Yes
Focus mode
AFS (Single) / AFC (Continuous) / MF
AF mode
Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
AF detective range
EV -6 – 20 (F1.4, ISO100 equivalent, AFS)
AF custom setting
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lamp Yes
AF lock
Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking Yes / Yes
Others
AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control
Light metering system
1,728-zone multi-pattern sensing system
Light metering mode
Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode
Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
ISO sensitivity
Auto / 50 / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400 / 204800 (Changeable to 1/3 EV step) (Standard output sensitivity)
Dual Native ISO
[Normal] Native ISO: 100, 640
Auto: Auto / 50 / 100-51200 / 102400 / 204800 [V-Log] Native ISO: 640, 4000
Auto: Auto / 320 / 640-51200
[HLG] Native ISO: 400, 2500
Auto: Auto / 400-51200 / 102400 / 204800
Auto: Auto / 100 / 200-51200 / 102400 / 204800 Exposure compensation
1/3 EV step +/-5EV ( +/-3EV for motion picture) AE lock
Set the Fn button in custom menu to AE lock Image Stabilization
Image sensor shift type (5-axis / 5.0-stop)
Dual I.S. (6.5-stop Dual I.S. 2 compatible) White balance
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 /
Color temperature setting 1, 2, 3, 4 White balance adjustment
Blue/Amber bias, Magenta/Green bias Color temperature setting
2500-10000K in 100K Shutter Type
Focal-plane shutter Shutter speed
Still image: Bulb (Max. 30 minutes), 1/8,000 – 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 – 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 – 60
Motion picture: 1/16,000 – 1/25
Creative Video M mode / MF mode: 1/16,000 – 1/2
Self timer
10sec, 3 images / 2sec / 10sec
Remote control
Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
AE bracket
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. +/-3 EV, single/burst
Aperture bracket
3, 5 or all positions in 1 EV step
Focus bracket
1 to 999 images, focus steps can be set in 10 levels
White balance bracket
3 images in blue/amber axis or in magenta/green axis, color temperature setting
Burst speed
Mechanical shutter/Electronic front curtain shutter: AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Electronic shutter: AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with
Live View)
Number of recordable images
RAW/RAW+JPEG: More than 24 images Number of recordable images
RAW/RAW+JPEG: More than 24 images 6K Photo / 4K Photo Burst speed
6K PHOTO: 30 frames/sec
4K PHOTO: 60 frames/sec, 30 frames/sec Exif information
Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.) Flash type
TTL External Flash (sold separately) Flash mode
Auto / Auto/Red-eye Reduction/Forced On/Forced On/Red-eye Reduction/Slow Sync./Slow
Sync./Red-eye Reduction/Forced Off Flash synchronization
1st Curtain Sync, 2nd Curtain Sync Flash output adjustment
1/3EV step +/-3EV Synchronization speed
Less than 1/250 second
The guide number decreases at 1/250 second. Only when set to M mode or S mode Wireless control
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel:
1ch/2ch/3ch/4ch Extra Tele Conversion
2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses),
1.4x (EX M) Photo Style
Standard / Vivid/Natural/Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 (HLG) / My Photo Style 1-10
Picture adjustment
Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / ISO / WB
Adjustable settings vary depending on the Photo Style mode
Filter
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome / Silky Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus / Fantasy / Star Filter / One Point Color / Sunshine
Luminance level
8-bit: 0-255 / 16-235 / 16-255 10-bit: 0-1023 / 64-940 / 64-1023
Wave form monitor Yes
LUT display
LUT View Assist (Monitor) / LUT View Assist (HDMI)
Time code
Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)
Knee control
Yes (in Like709 mode)
REC
Exposure Comp./Sensitivity/White Balance/Photo Style/Metering Mode/Aspect Ratio/Picture Quality/Picture Size/HLG Photo/High Resolution Mode/1 Shot Spot Metering/Long Exposure NR/Min. Shutter Speed/1 Shot RAW+JPG/i.Dynamic Range/Filter Effect/One Push AE/Touch AE/Exposure Mode/AF Mode/AF Custom Setting(Photo)/AF Custom Setting(Video)/Focus Peaking/Focus Peaking Sensitivity/1-Area AF Moving Speed/Focus Ring Lock/AE LOCK/AF LOCK/AF/AE LOCK/AF-ON/AF-ON: Near Shift/AF-ON: Far Shift/AF-Point Scope/Focus Area Set/Flash Mode/Flash Adjust./Wireless Flash Setup/Drive Mode/1 Shot 6K/4K PHOTO/Bracketing/Silent Mode/Image Stabilizer/Shutter Type/Ex. Tele Conv./Live View Composite/Post-Focus/Motion Pic. Rec File Format/Motion Pic. Rec Quality/Slow & Quick Setting/Time Code Display/Sound Rec Level Disp./Sound Rec Level Adj./Sound Rec Level Limiter/Special Mic. Directivity Adjust/Image Stabilizer/E-Stabilization (Video)/Boost I.S. (Video)/Image Area of Video/Live Cropping/Q.MENU/Rec/Playback Switch/Video Record /LVF/Monitor Switch/Operation Lock/Dial Operation Switch/Preview/Preview Aperture Effect/Constant Preview/Level Gauge/Histogram/Luminance Spot Meter/Frame Marker/Photo Grid Line/Live View Boost/Monochrome Live View/Night Mode/LVF/Monitor Disp. Style/Photo/Video Preview/Zebra Pattern/LUT View Assist (Monitor)/LUT View Assist (HDMI)/LUT Select/HLG View Assist(Monitor)/HLG View Assist (HDMI)/Sheer Overlay/I.S. Status Scope/Waveform Monitor/Anamorphic Desqueeze Display/Focus Ring Control/Zoom Control/Destination Card Slot/Wi-Fi/No Setting/Restore to Default
Play
Magnify from AF Point/LUT View Assist (Monitor)/HLG View Assist (Monitor)/Anamorphic Desqueeze Display/RAW Processing/6K/4K PHOTO Bulk Saving/Delete Single/Protect / Rating 1, 2, 3, 4, 5/Copy/Rec/Playback Switch/LVF/Monitor Switch/Video Record/Night Mode/Card Slot Change/Wi-Fi/Send Image (Smartphone)/LUT View Assist (HDMI)/HLG View Assist (HDMI)/6K/4K Photo Play/No Setting/Off (Disable Press and Hold)/Restore to Default
Level Gauge Yes
Print
PictBridge compatible
USB
SuperSpeed USB 3.1 Gen1 Type-C
HDMI
Monitor-through:
When a mode other than [4K/60p]/[4K/50p] is selected for [Picture Quality]: 4:2:2 10bit, 4:2:2 8bit, 4:2:0 8bit
When [4K/60p]/[4K/50p] mode is selected in [Rec Quality]:
4:2:2 10bit, 4:2:0 8bit
Info Display: ON / OFF (selectable):
HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable) Playback:
microHDMI TypeD / VIERA Link, Audio: Stereo:
NTSC (59.94Hz): Auto / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p PAL (50.00Hz): Auto /4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
Remote Input Dia.2.5mm
External Mic & Audio Device Input
Dia.3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable.
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately)
Headphone Output Dia.3.5mm
Microphone
Stereo, Wind Noise Canceller: OFF / Low/ Standard / High (sold separately)
XLR Microphone
Yes with DMW-XLR1 (sold separately)
Speaker Monaural
SD Card Slot
SD Memory Card, SDHC Memory Card, SDXC Memory Card
Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards
Wi-Fi
2.4GHz (STA/AP) (IEEE802.11b/g/n)
5GHz (STA) (IEEE 802.11a/n/ac)
5GHz Wi-Fi is not available in some countries
Bluetooth
Bluetooth v4.2 (Bluetooth Low Energy (BLE))
Dust And Splash Resistant Yes

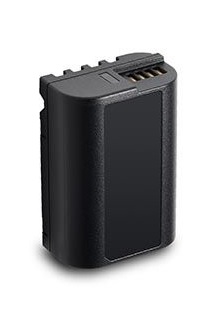

Battery
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging
Battery Life (Cipa Standard)
Approx. 440 images (rear monitor), 470 images (LVF), 1,500 images (Power Save LVF mode) with S-R2060
Continuous Recordable Time
MP4 [4K/60p]: Approx. 110 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor)
MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 100 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor)
Actual Recordable Time
MP4 [4K/60p]: Approx. 55 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor)
MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 50 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor)
Battery Grip
DMW-BGS5 (sold separately)
Operating Temperature
0 Degree C to 40 Degree C
Operating Humidity 10%RH to 80%RH
Dimensions (W x H x D)
Approx. 132.6 x 97.1 x 81.9mm (excluding protrusions)
Weight
Approx.: 714g (SD Memory Card x 1, Battery, Body) Approx.: 630g (Body only)
via nokishita
